- Lightweight and impressive capacity 60A plasma
- One of the largest plasma available in single phase
- Separate compressor required
- Generator friendly
- Comes with torch
- Lightweight 23kg
- Auto over voltage, over temperature, and over current protection
- Includes air pressure regulator

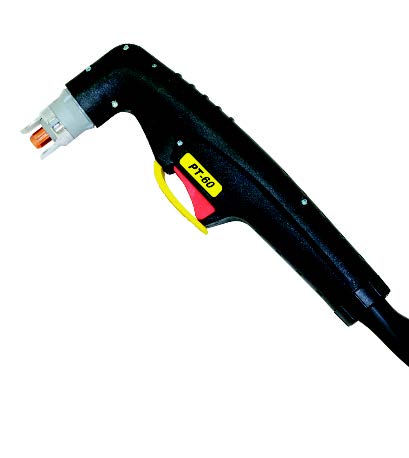

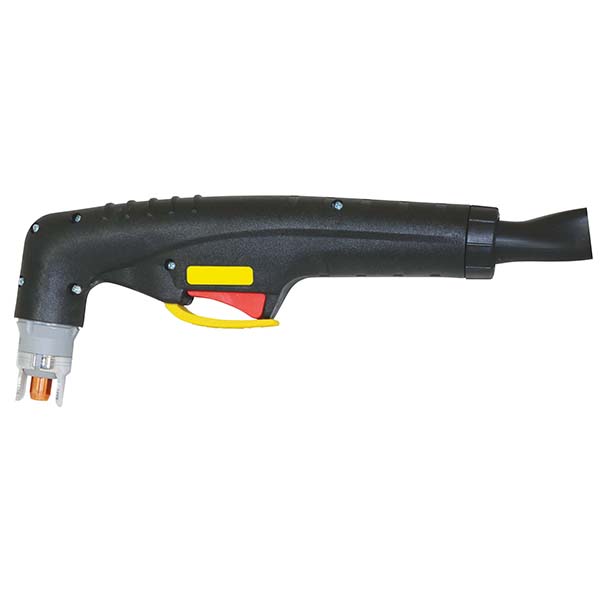

- Includes plasma torch
- Contact arc striking
- 4HP single phase compressor is recommended
- Air operating pressure (psi): 50-90 (3.5-6bar)
- Can cut up to 20-25mm mild steel (compressor dependent)
- Generator friendly
- Input power voltage (V): 230±10%
- Frequency (Hz): 50/60
- Effective input current (A): 40
- Maximum (kVA): 9.5
- Current adjustment range (A): 20-60
- Maximum no-load voltage (V): 400
- Duty cycle (A) (40°C 10 min): 95%@60 | 100%@58
- Severance cut for carbon steel (mm): ≤35
- Production cut for carbon steel (mm): ≤25
- Production cut for stainless steel (mm): ≤25
- Production cut for aluminium (mm): ≤20
- Production cut for copper (mm): ≤14
- Air operating pressure (psi): 50-90 (3.5-6bar)
- Air operating flow (l/min): 160 (5.65 cfm)
- Protection class: Ip23
- Insulation class: H
- Cooling: Air
- Overall dimensions (mm): 650 x 243 x 445
- Weight (kg): 23
