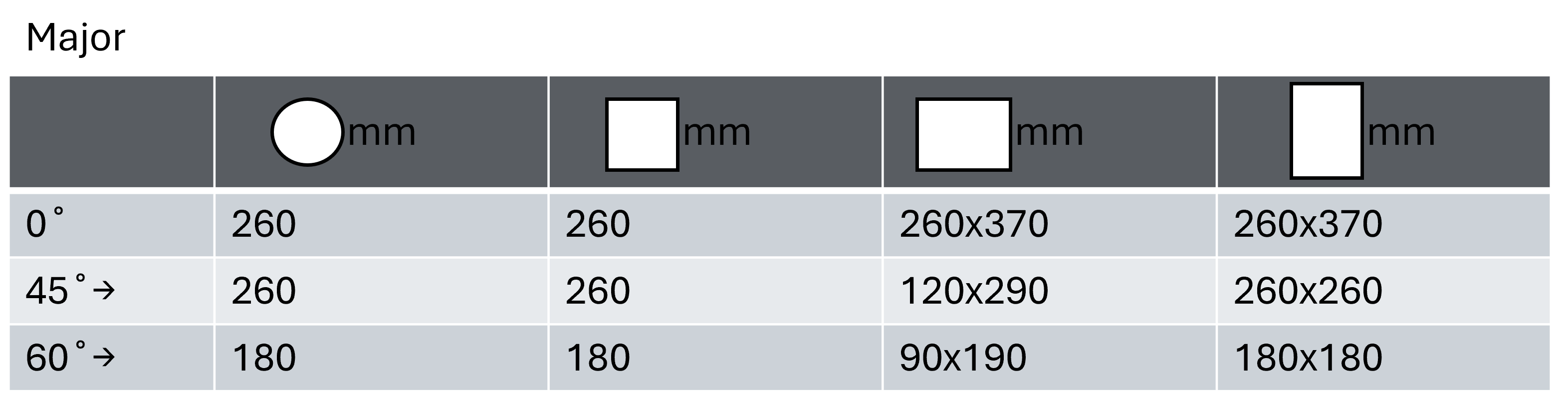

Major

• Semiautomatic band saw machine to cut from 0° to 60° right.
• Head structure in special aluminium casting alloy.
• Dynamometric blade tensioning.
• Broken blade micro.
• Blade cleaning brush integrated in the head protection cover.
• Head feeding system with hydraulic cylinder and descent adjustment by flow valve placed in front position.
• Blade guide with combined action of side bearings, carbide plates and top bearing.
• Reduction gear box with inclined grinded case-hardened teeth lubricated with long lasting grease.
• Output shaft of the reduction gear box Ø 40 mm and motor wheel connection with a keyless shaft/hub connection. Version 2 speed 35/70 m/min – version VHZ 16÷120 m/min.
• Material clamping vice with manual positioning with hydraulic locking cylinder.
• Ergonomic working table and control panel. Head rotation angle stop at 0°, 45° and 60°.
• Degrees measuring system, graduated scale and rugged in construction locking lever.
• Loading side: Rugged in construction support roller with double positioning.
• Millimetric reference length stop measuring system, cutting length 0÷600 mm.
• Heavy duty machine base, sheet metal construction, raised sides for chips & coolant containment.
• Base unit door with key locking, housing the coolant pump & 20 L capacity tank, plus the Hydraulic pump unit for bow cylinder movement, vice cylinder.
• Electrical cabinet with 24 VAC, lockable main switch and electric drives.
• Total protection against highest voltage and short circuit current. Protection level IP 55.
• Control panel with buttons and switches for blade speed selection, lowering and lifting the head, coolant selection and lights for the eventual alarms detection.
• The machine has a sensor which memorises the head starting position.
