Pegasus

There is currently no video available for this product

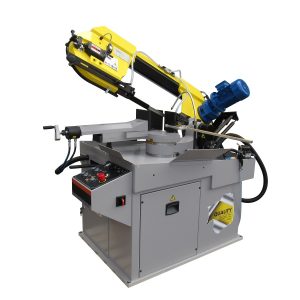

• Semiautomatic band saw machine to cut from 0° to 60°.
• Head structure in 3 parts: special aluminium alloy, steel and cast iron.
• Dynamometric blade tensioning.
• Broken blade micro.
• Head feeding system with hydraulic cylinder and front balanced valve for feeding regulation and cutting optimizing.
• Blade cleaning brush driven by motor gearbox.
• DTI “interrupted cut device” installed as standard equipment.
• Blade guide with combined action of side bearings, carbide plates and top bearing.
• Direct drive: Reduction gear box with inclined grinded case-hardened teeth lubricated with long lasting grease.
• Connection of the motor wheel to a flange with two conical bearings. 16÷120 m/min VHZ electronical blade speed regulation for a wide range of blade speed selection.
• Material clamping vice with rack system, manual positioning and hydraulic stop cylinder.
• Ergonomic working table and control panel.
• Head rotation angle stop at 0°, 45° and 60°.
• Graduated scale for angle reading and rugged in construction locking lever.
• Two-rolled roller table for supporting material loading side placed on the basement.
• Heavy duty machine base, sheet metal construction, raised sides for chips & coolant containment.
• Housing the coolant pump & 80L capacity tank, plus the Hydraulic pump unit for bow cylinder movement, vice cylinder.
• Electrical cabinet with 24VAC, main switch and electric drives.
• Blade speed analogic regulator.
• Total protection against highest voltage and short circuit current. Protection level IP 55.
